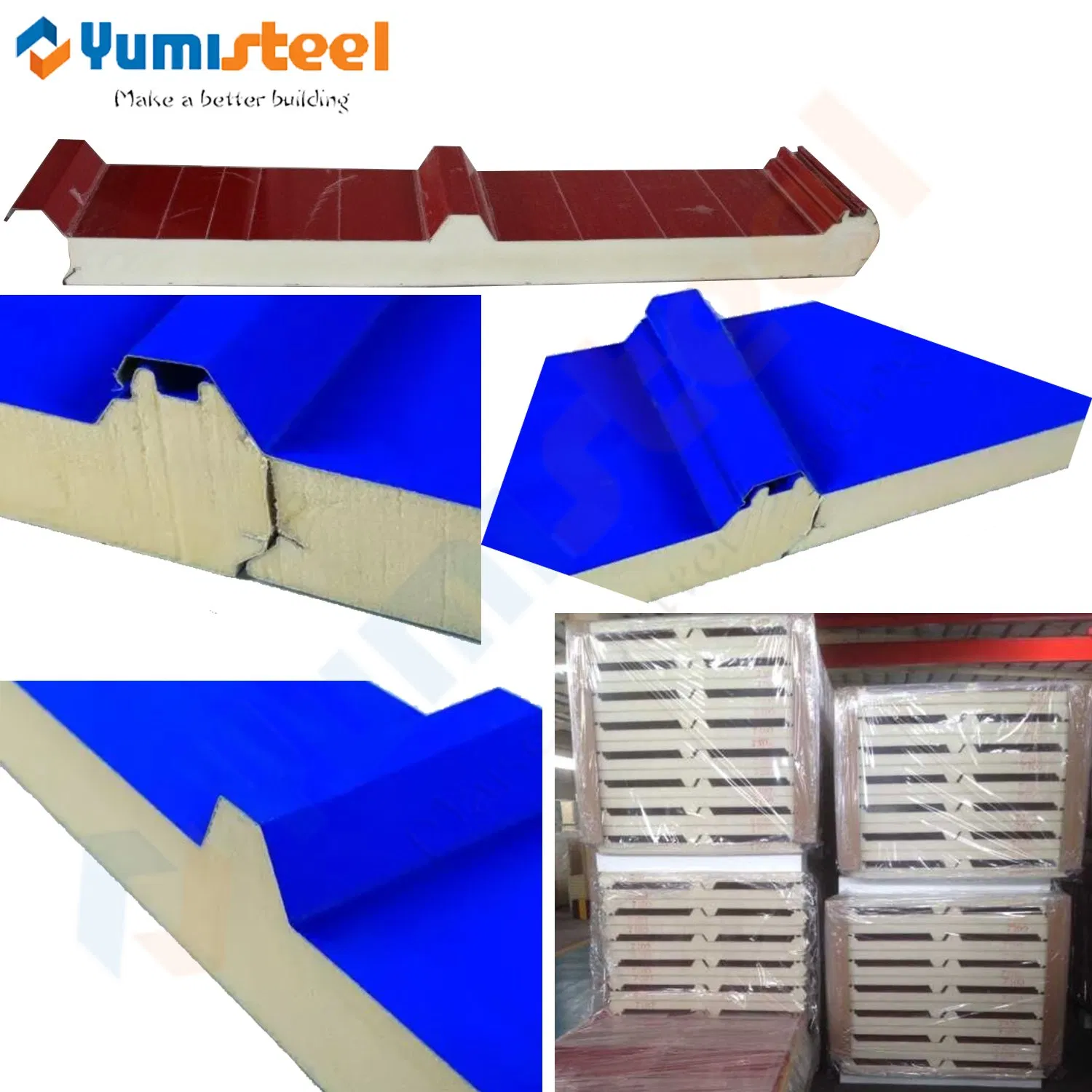

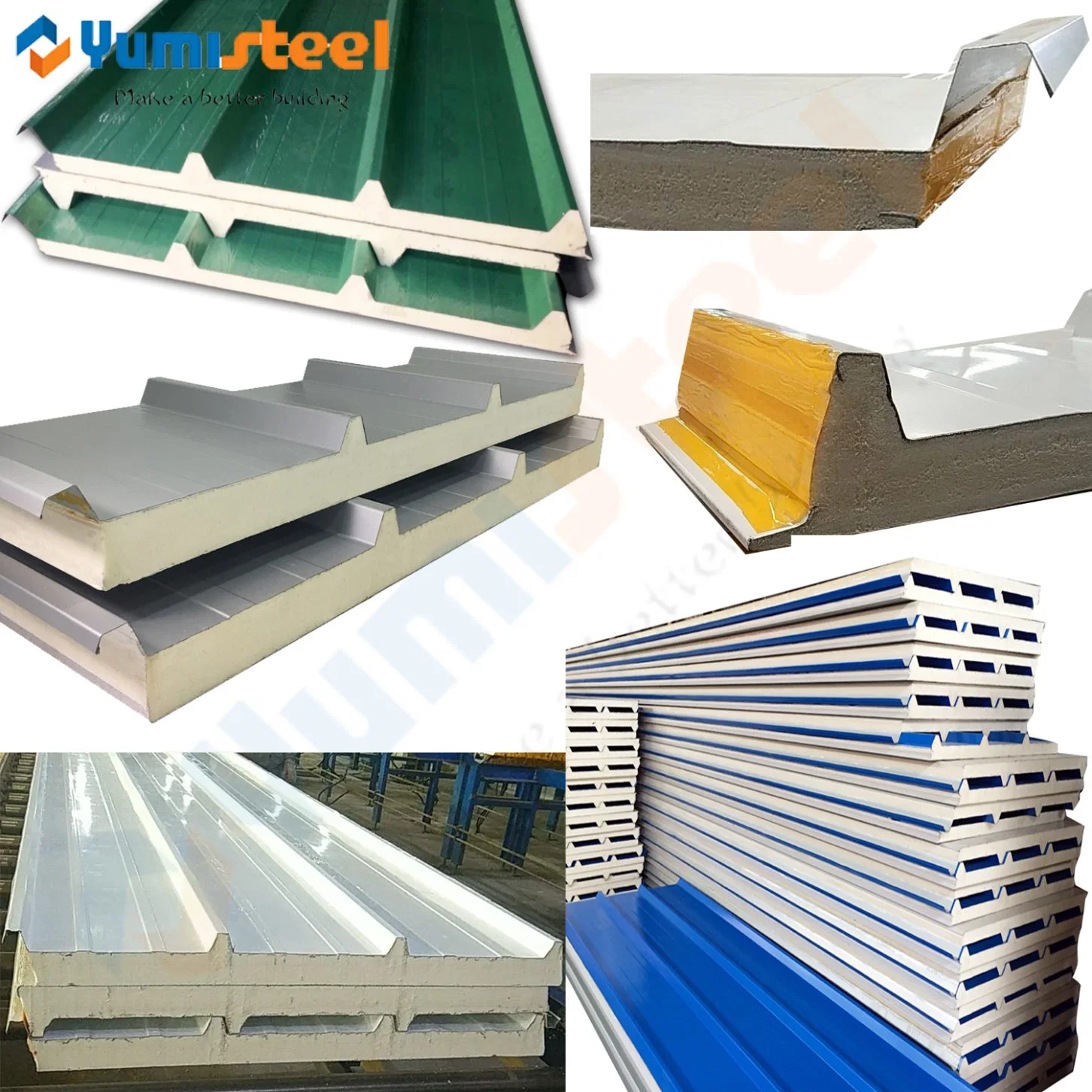

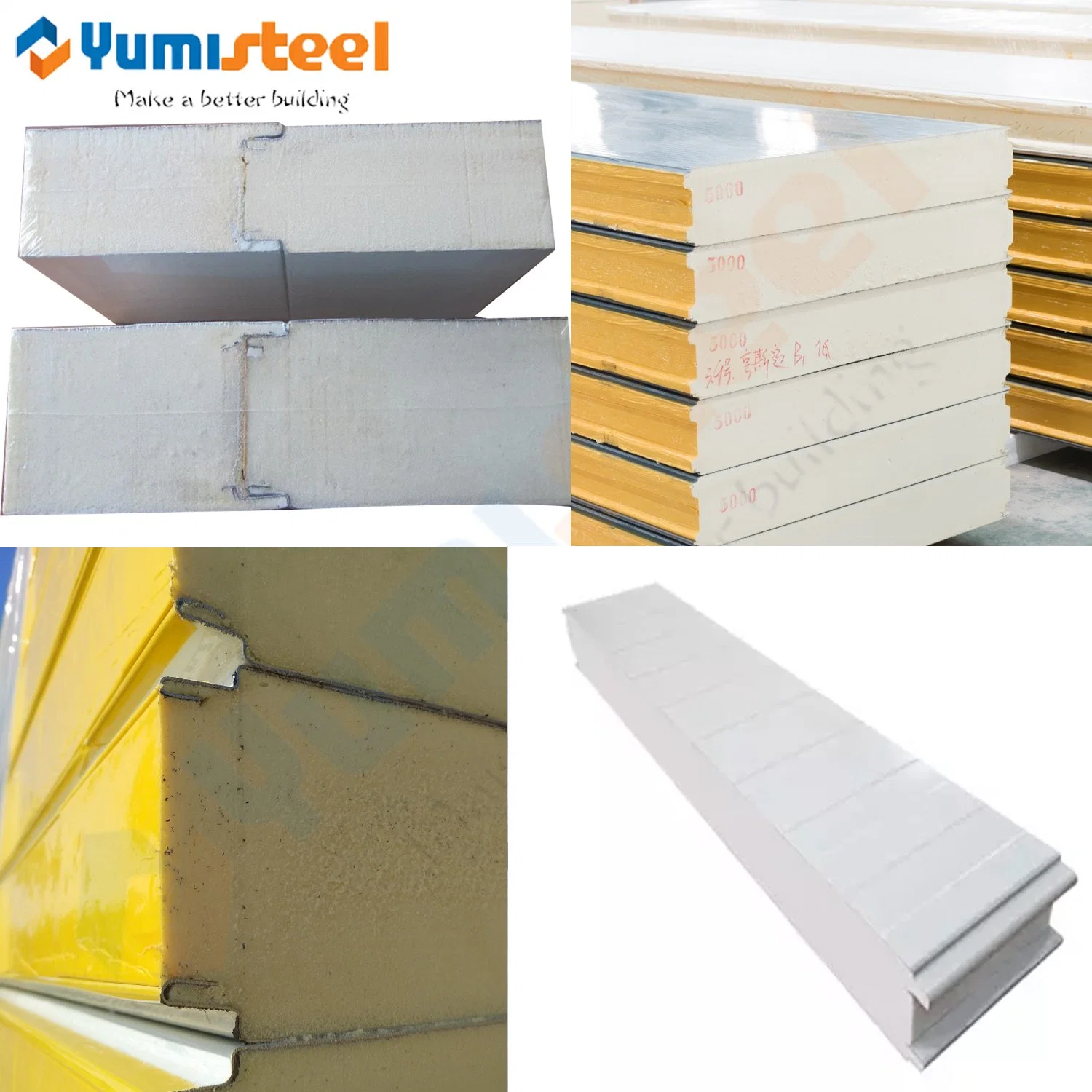

Polyurethane Sandwich Panel also called PU Sandwich Panel, the top & bottom sheet of this panel is Galvanized & Pre-painted steel sheets, and core material is 5 components Polyurethane glue, it is formed by heating, foaming & laminating. Polyurethane is the best material for heat and sound insulation. It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems.
1) Surface sheet: Usually the surface sheet of PUR or PIR sandwich panels is PPGI or PPGL steel color coated sheets. Coating types include PE, PVDF, HDP, SMP, etc.
2) Polyurethane core material: High-quality core materials from strategic cooperation brands to ensure thermal performance.

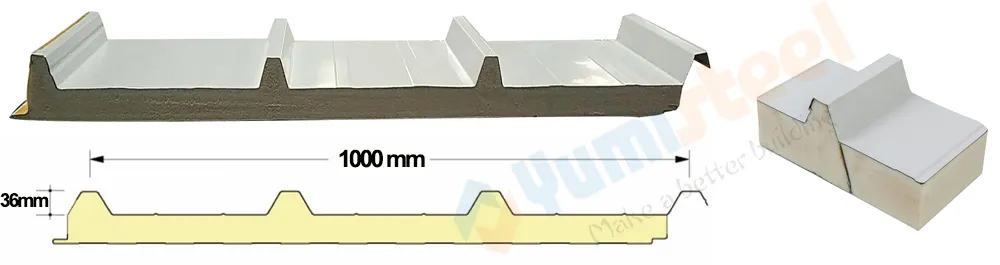

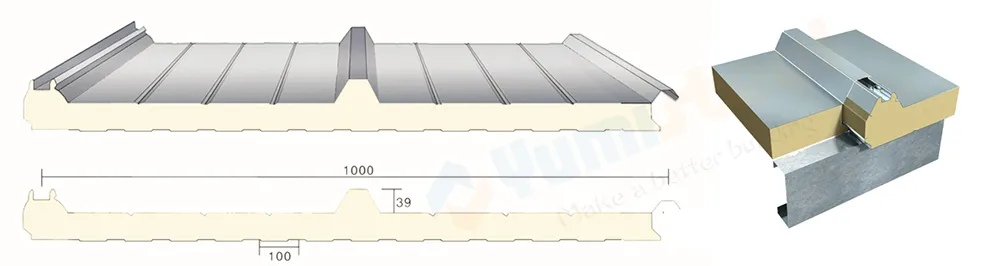

1) Roof panels: 3 ribs concealed joint or 4 ribs overlapping joint.

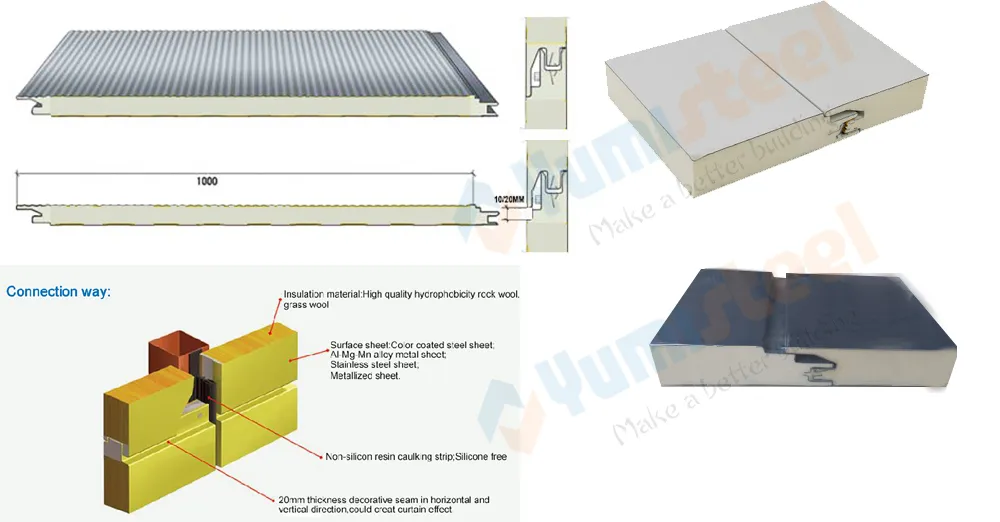

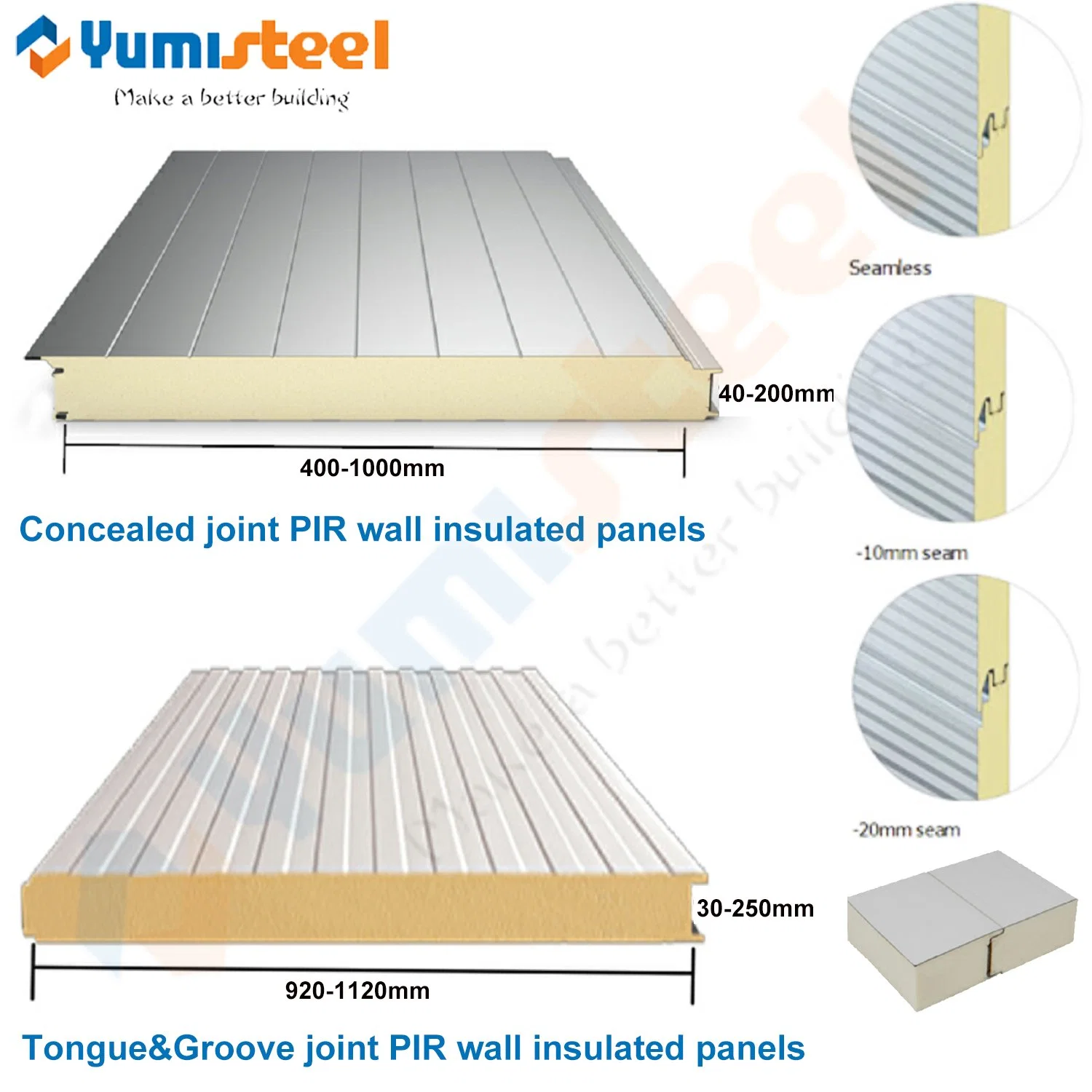

2) Wall panels: Concealed joint with or without decorative seams.
| Specification | Details |
|---|---|
| Effective width | 400~1000 mm / 920, 1000, 1120 mm |
| Panel thickness | 30, 35, 40, 50, 60, 75, 100, 150, 200 mm |
| Surface sheets | PPGI/ PPGL/ Aluminum/ Stainless steel/ PVC |
| Steel thickness | 0.40 - 0.75 mm |
| Regular color | White grey, Sea blue, Sliver grey, Iron grey |
| Available length | Up to 11.95m |

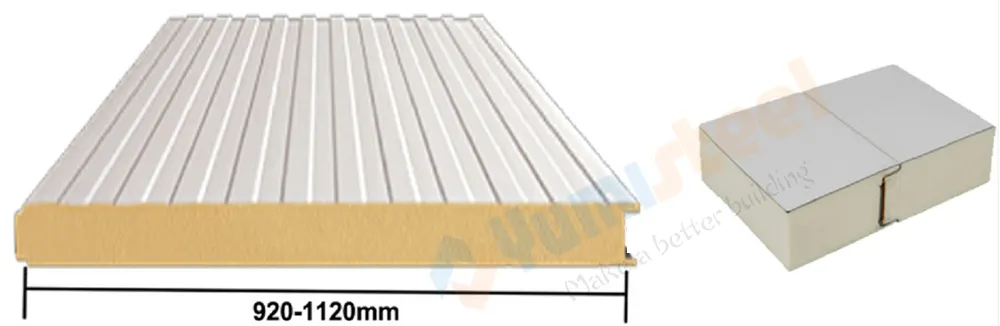

3) Cold Room Panels: Tongue & groove joints for high insulation.

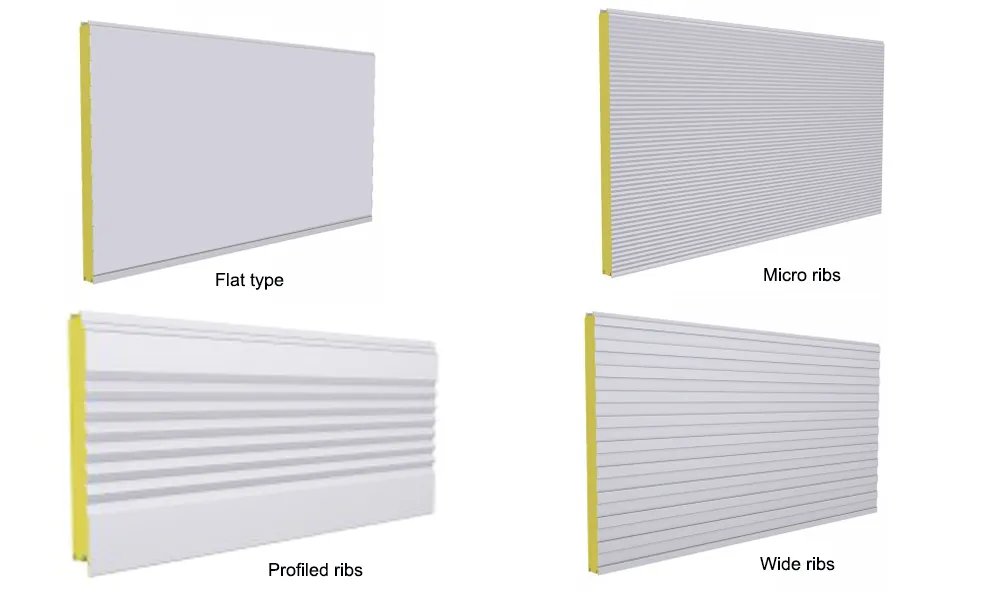

Four types of surface profiles are available: Flat type (pure flat), Micro ribs (corrugated), Profiled ribs (grooved), and Wide ribs (trapeze).

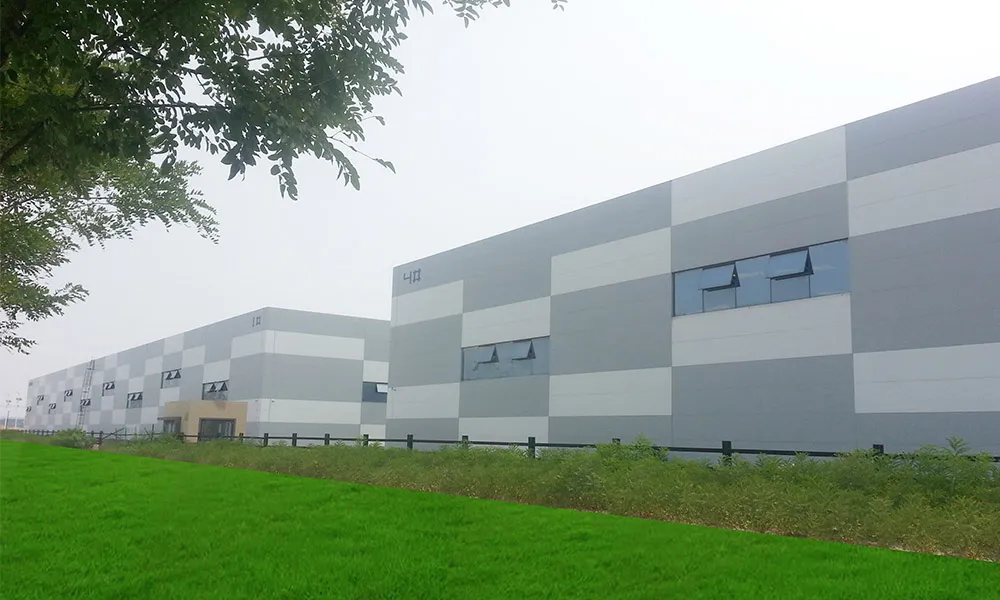

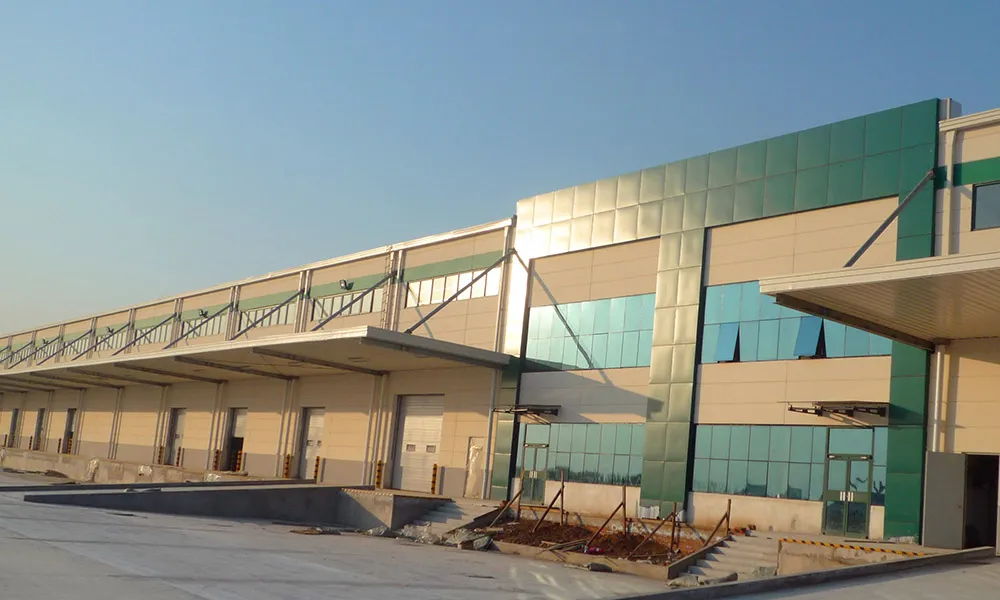

Suitable for various roofs and walls in large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, and purification workshops.
We provide a professional combination of industry and trade services for steel structure products. Our products are sold worldwide, including America, Europe, Southeast Asia, and Africa.
