Product Description

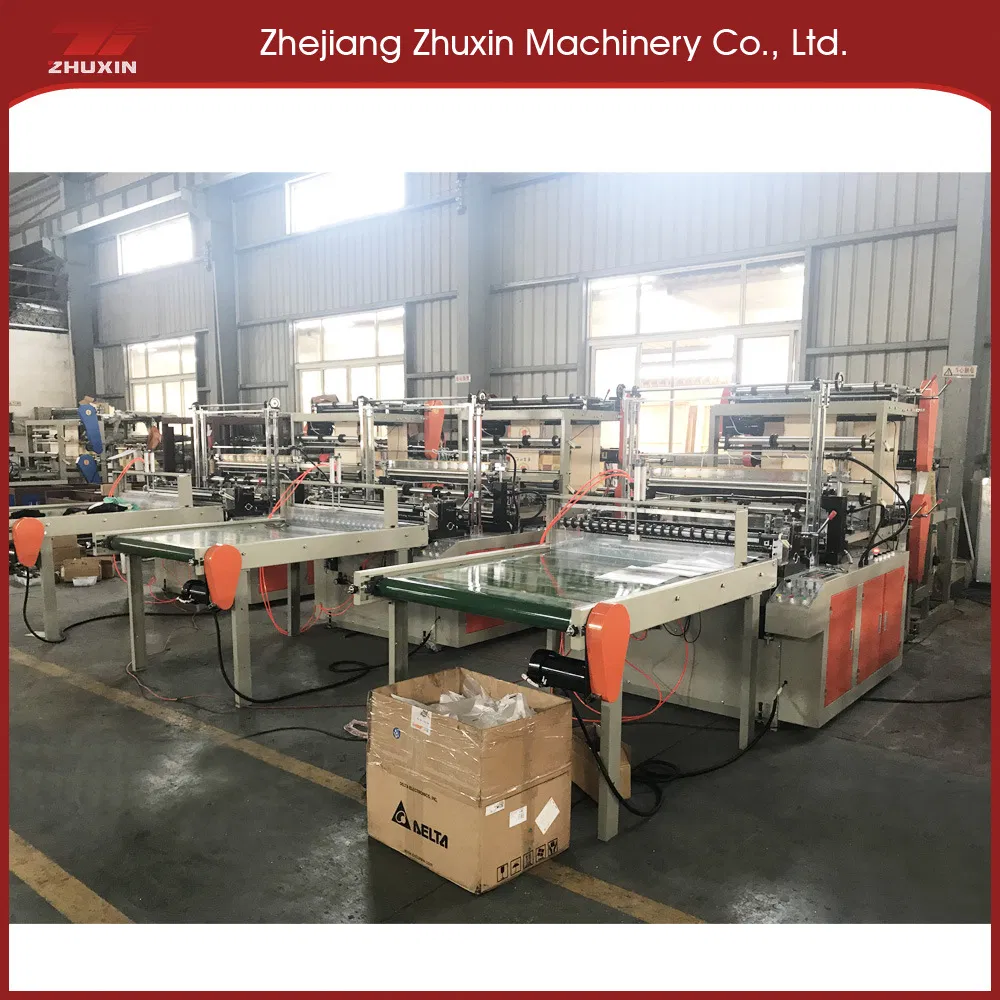

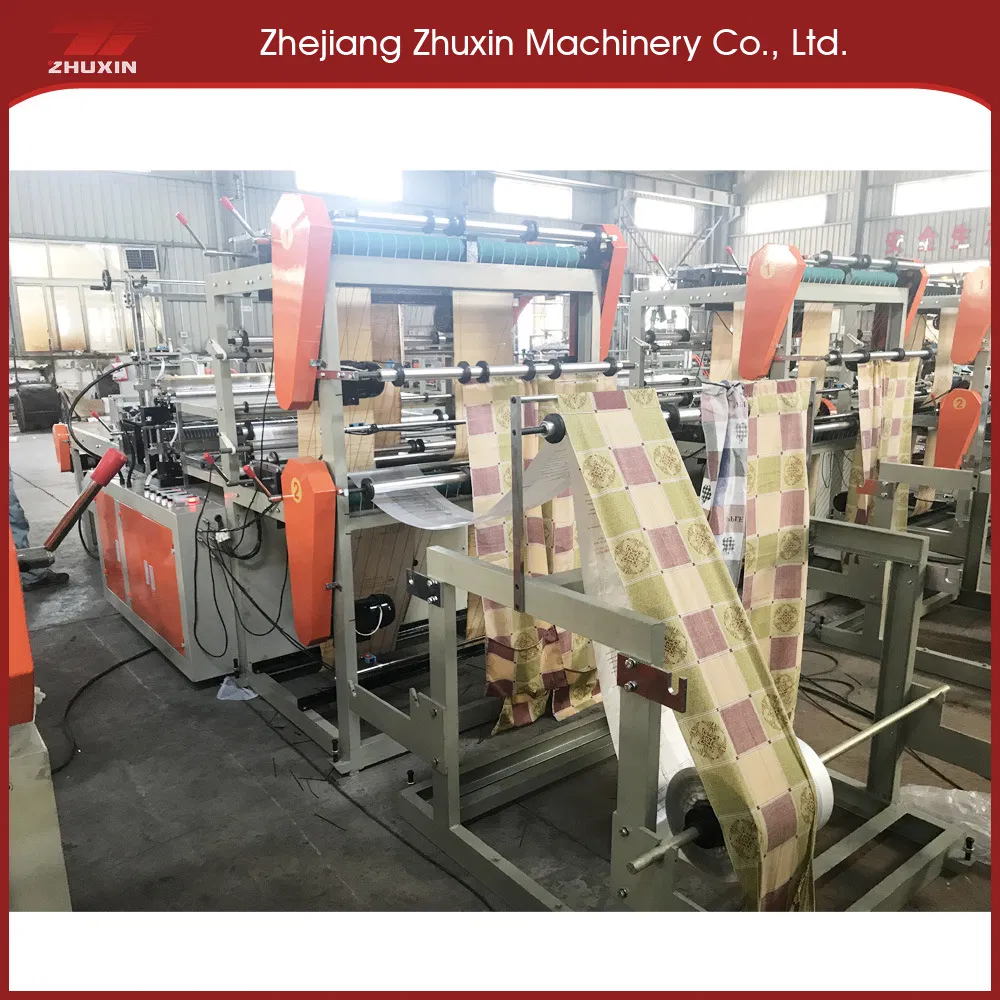

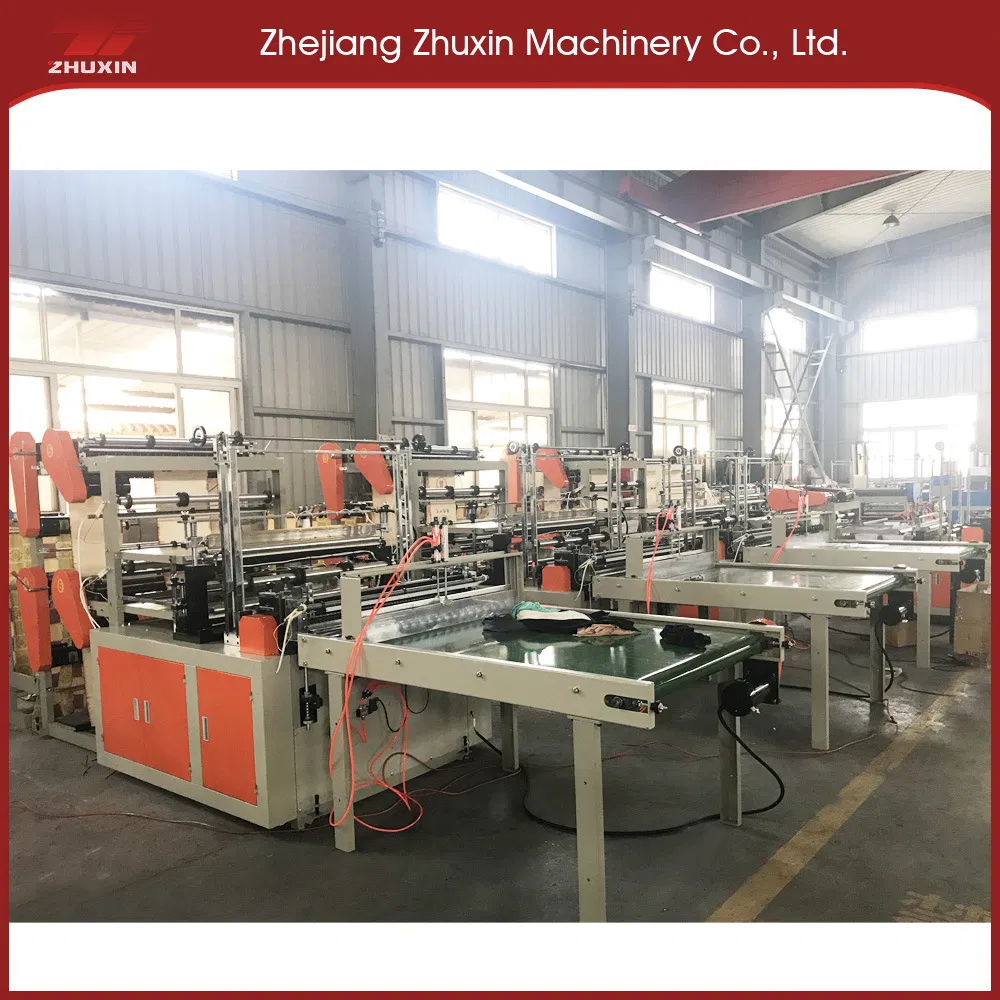

SHXJ Bag Machine with Automatic Actuation Device
Categories: Bag Making Machine
Model: SHXJ 600-1200
Terms of Payment: L/C, Western Union, T/T
Performance and Characteristics
Suitable for sealing and cutting high-density polyethylene (HDPE), low-density polyethylene (LDPE), and polypropylene (PP) plastic film.
Ideal equipment for producing plastic film-vest bags and flat bags.
Equipped with photoelectric control feeding device and automatic alarm systems.
Features automatic process of bag-making, easy operation, and stable performance.
Ensures firm bottom sealing, making it highly economical for various production scales.
Includes constant temperature control device and electrostatic removing device.
Technical Parameters
| Model |
SHXJ600 |
SHXJ700 |
SHXJ800 |
SHXJ-1000 |
SHXJ-1200 |
| Width of sealing & cutting(mm) |
550 |
650 |
750 |
950 |
1150 |
| Length of sealing & cutting(mm) |
950 |
950 |
950 |
950 |
950 |
| Speed (pc/min) |
30-120 |
30-120 |
30-120 |
30-100 |
30-80 |
| No. of strip (pcs) |
4 |
4 |
4 |
4 |
4 |
| Power of motor (kw) |
1.1 |
1.1 |
1.1 |
1.1 |
2.2 |
| Weight (kg) |
700 |
750 |
800 |
900 |
1000 |
| Dimensions (LxWxH) (m) |
3.2×1.15×1.7 |
3.2×1.25×1.7 |
3.2×1.35×1.8 |
3.6x1.55x1.9 |
3.6x1.75x2 |
❓
Frequently Asked Questions
What types of materials can this machine process?
The SHXJ series is specifically designed to handle HDPE, LDPE, and PP plastic films efficiently.
What kind of bags can be manufactured with this equipment?
It is the ideal equipment for producing both plastic vest bags (T-shirt bags) and flat bags.
Is the machine easy to operate for small businesses?
Yes, the machine features an automatic bag-making process and an easy-to-use interface, making it suitable for small, middle, and large-sized enterprises.
Does the machine include any safety or monitoring features?
Yes, it is equipped with a photoelectric control feeding device and an automatic alarm system to ensure stable performance and safety.
What is the production speed of the SHXJ series?
Depending on the specific model and material, the speed ranges from 30 up to 120 pieces per minute.
How is the sealing quality of the bags?
The machine uses high-quality heat-sealing and heat-cutting technology to ensure a firm and reliable bottom seal for all produced bags.
