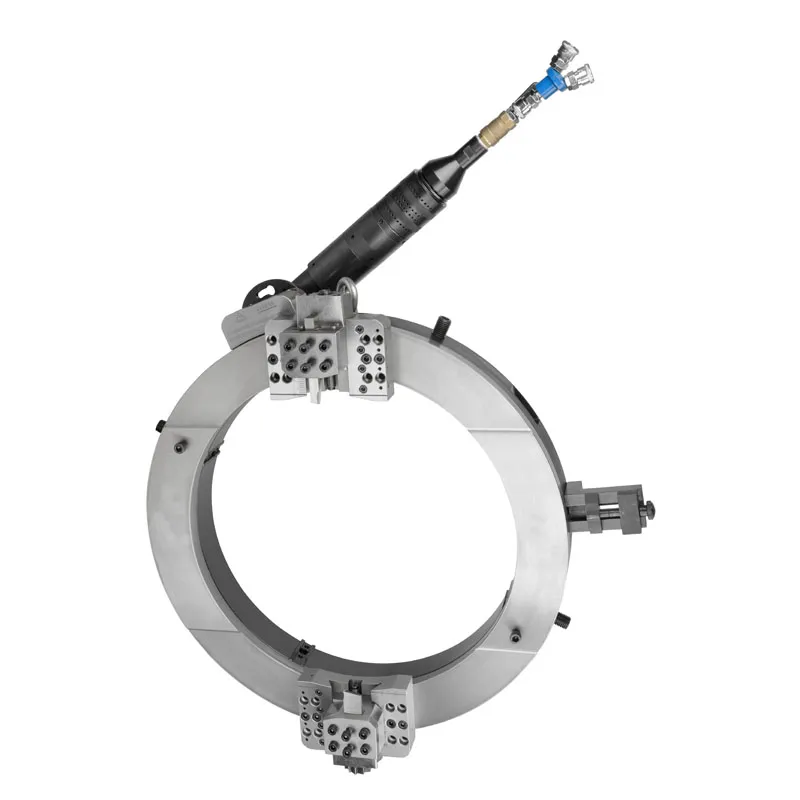

Pneumatic Tube Steel Pipe Cold Cutting and Beveling Machine TOE-377-Earts Beauty

Basic Information

Model NO.

TOE-377

Type

Pipe Beveling Machine

Style

Desktop

Layout

Vertical

Automatic Grade

Semi-Automatic

Power Source

Pneumatic

Certification

CE, ISO

Wall Thickness

<=30mm

Rotation Speed

12r/Min

Working Range(Od)

8-14inch

Body Material

Aluminum Alloy

Production Capacity

500 Sets Per Month

Features at a Glance

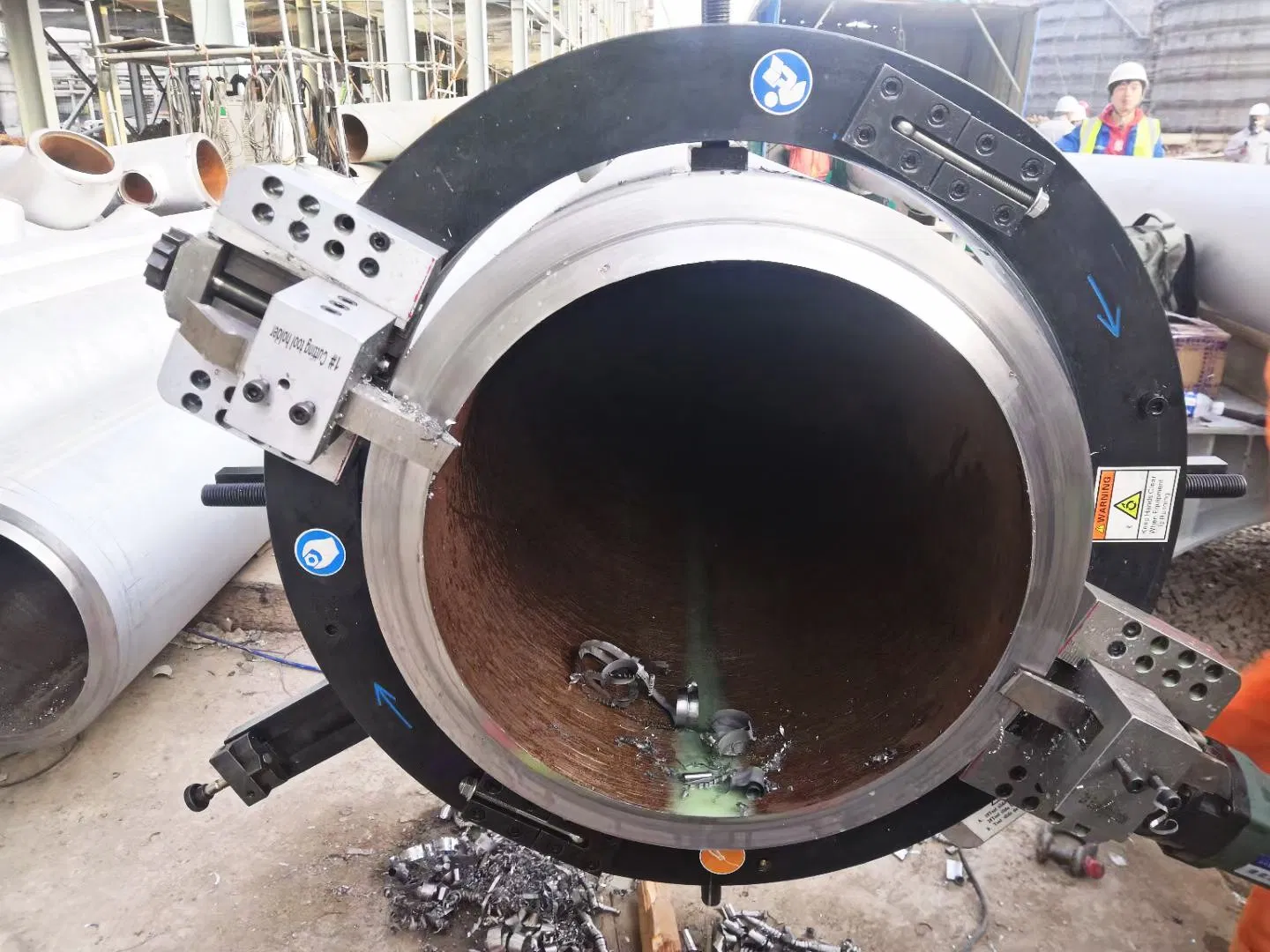

TOE/TOP/TOH models of pipe cutting and beveling machine are ideal options for all types of pipe cold cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD (Outer Diameter) of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cuts or simultaneous processes on cold cutting and bevelling, single point, counterbore, and flange facing operations.

Product Specifications

Model Type	Spec	Capacity Outer Diameter		Wall Thickness (mm)		Rotation Speed
Model Type	Spec	OD MM	OD Inch	Standard	Heavy Duty	Rotation Speed
1) TOE Electric 2) TOP Pneumatic 3) TOH Hydraulic	89	25-89	1-3	<=30	-	42r/min
	168	50-168	2-6	<=30	-	18r/min
	230	80-230	3-8	<=30	-	15r/min
	305	150-305	6-10	<=30	<=110	13r/min
	377	219-377	8-14	<=30	<=110	12r/min
	610	457-610	18-24	<=30	<=110	11r/min

Machine Packing Details

Spec	OD Range (mm)	N.W. (kg)	G.W. (kg)	Dimensions LWH (cm)
89	25-89	28	43	56.55232
168	50-168	48	72	676732
377	219-377	68	100	868332
610	457-610	115	162	1029036
1230	1066-1230	360	460	16016038

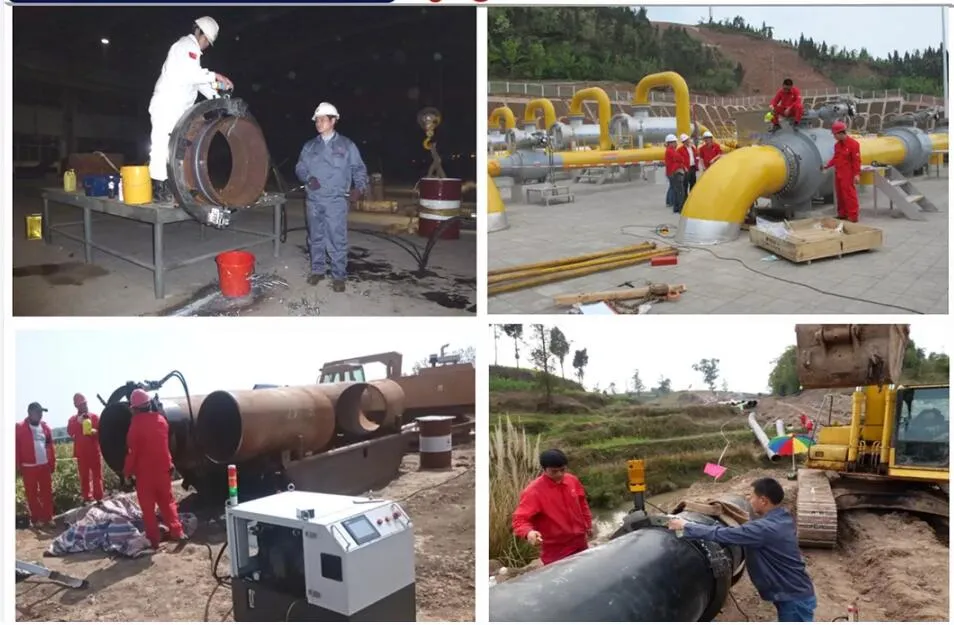

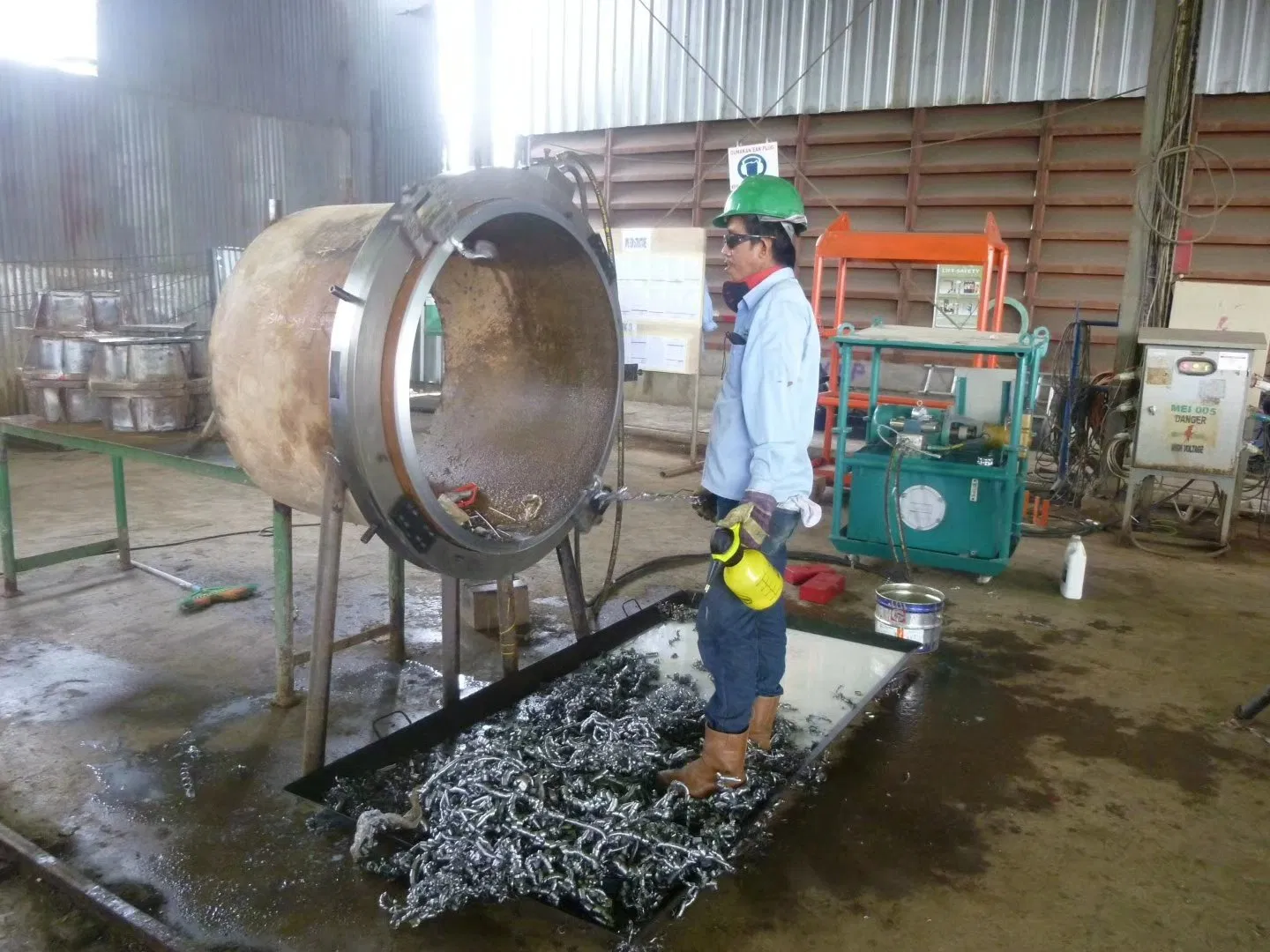

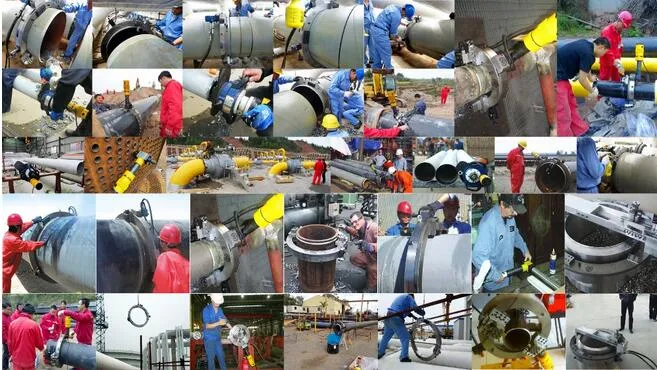

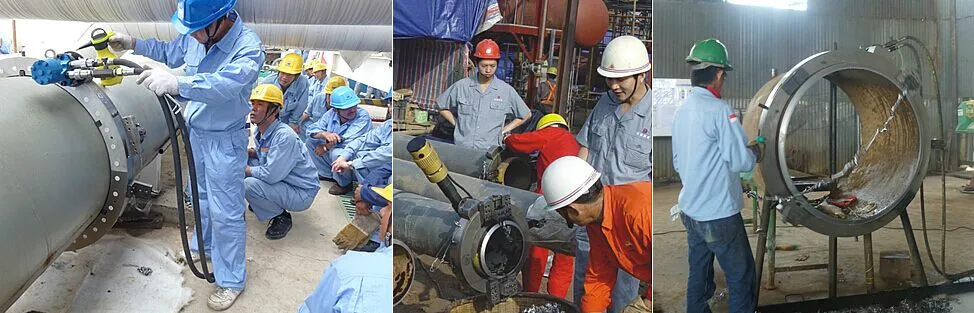

Successful Projects

TOE/TOP Series

Simultaneous cutting and beveling.
Split frame for easy mounting.
Automatic tool feed optional.
Supports pipe sizes 1" to 72".

TIE/TIP Series

ID mounted work capacity: 18-820mm.
Wall thickness: 15mm-75mm.
Adjustable groove angle: 0°-45°.
Explosion-proof & stable performance.

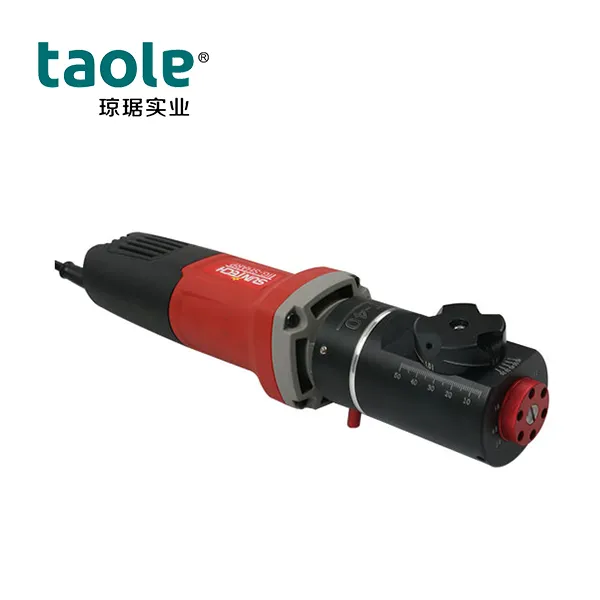

ST-40 Electrode Grinder

Electronic RPM control.
Integrated dust collection system.
High precision for welding quality.
Portable and easy to adjust.

Frequently Asked Questions

What are the main advantages of the split frame design?

The split frame design allows the machine to be separated into two halves, making it easy to mount around the outer diameter of in-line pipelines or fittings without having to disassemble the pipes.

What is the standard lead time for machine delivery?

Standard models are typically ready within 3-7 days. Customized solutions or larger units may require 25-45 days for manufacturing and testing.

Can the machine handle different wall thicknesses?

Yes, our machines are designed for versatility. Standard models handle up to 30mm, while heavy-duty configurations can process wall thicknesses up to 110mm.

What power sources are available for these machines?

We offer three main driving options: Electric (TOE), Pneumatic (TOP), and Hydraulic (TOH) to suit different working environments and safety requirements.

How is after-sales support managed?

We provide comprehensive English manuals and video guides. Our team offers remote technical support via email and phone, and we maintain a full stock of necessary spare parts.

What materials can these machines cut and bevel?

They are ideal for various metal workpieces, including carbon steel, stainless steel, and alloy pipes, providing a perfect weld-ready finish.
