Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
MG-G800
Cup Size
4-12oz & 12-16oz
Speed
120-150PCS/Min
Required Paper
Single/Double PE/PLA/Bio Coated Paper
Automation
Automatic
Certification
CE
Product Type
Paper Cup Machine
Lubrication
Automatic Shower Lubrication System
Production Capacity
500 sets/Year

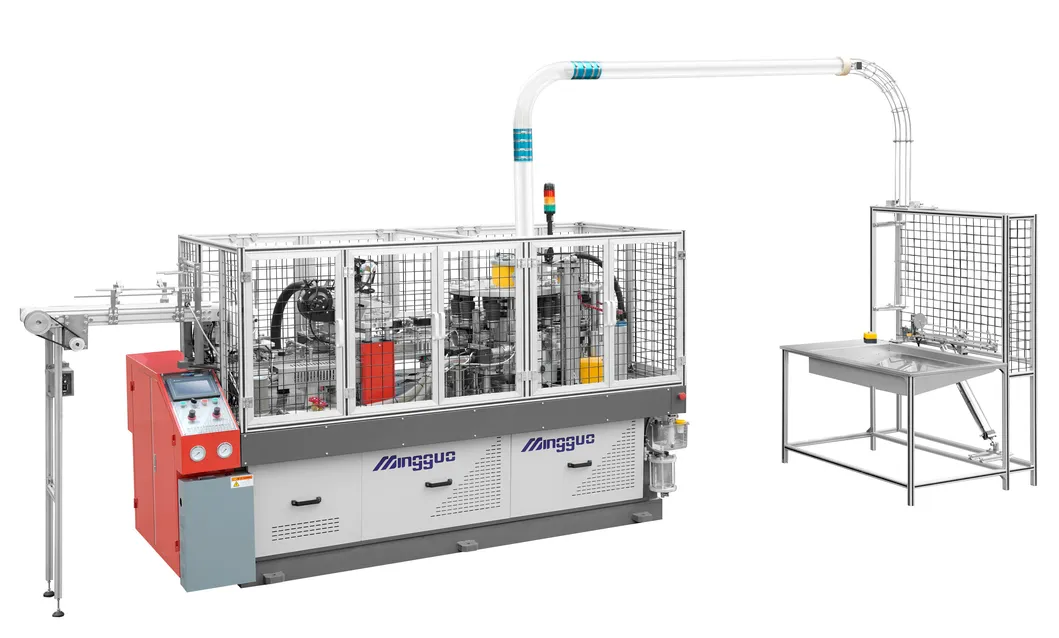

High Speed Paper Cup Machine Automatic Production Line
Product Description

MG-G800 New High-Speed Paper Cup Forming Machine

The MG-G800 high-speed paper cup forming machine is a latest developed equipment that achieves a stable cup making speed of 120-150pcs/min. With an optimized mechanical transmission and helical gear system, it offers superior efficiency and a compact design.

🏆
Advanced Sealing: Cup walls and bottoms are sealed with LEISTER heaters and high-quality ultrasonic side welders for leak-proof performance.
⚙️
Smart Control: Features Delta PLC, touch screen interaction, and Panasonic sensors for automated monitoring and fault shutdown.
🛡️
Safety & Efficiency: High degree of automation minimizes labor intensity while ensuring operational safety.
Technical Layout
Technical Specification
Model MG-G800
Paper Cup Specs 4-16oz (100-450ml); T: 55-95mm, H: 60-135mm, B: 55-70mm
Paper GSM 150-350 GSM single/double PE coated paper
Speed 120-150 pcs/min
Voltage/Power 220/380V; 12KW Full load
Air Supply 0.5-0.8Mpa; Output: 0.5cbm/min
Weight/Dimensions 3000KG; 2800x1500x1700mm
Customization Fully customizable for various paper containers and bowls

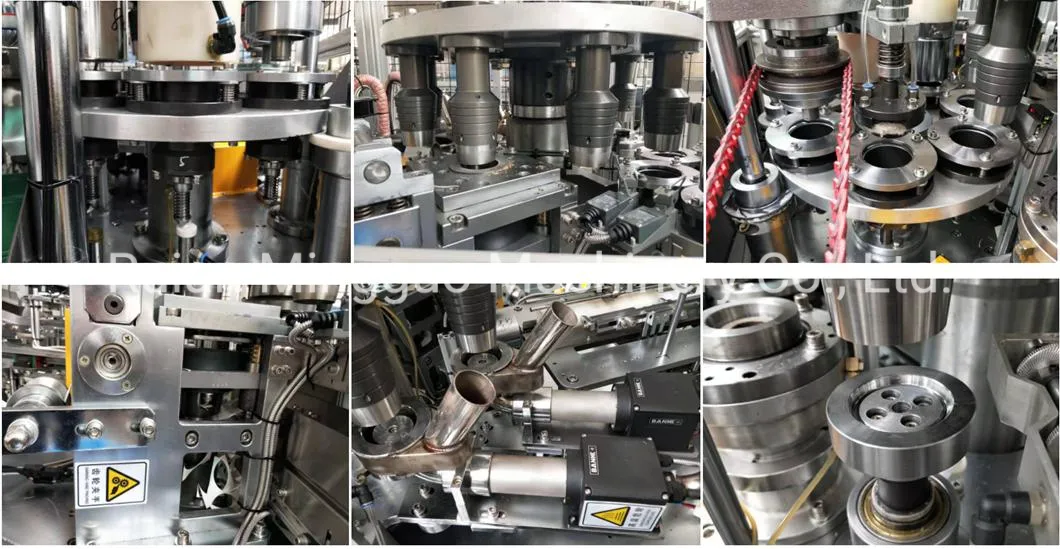

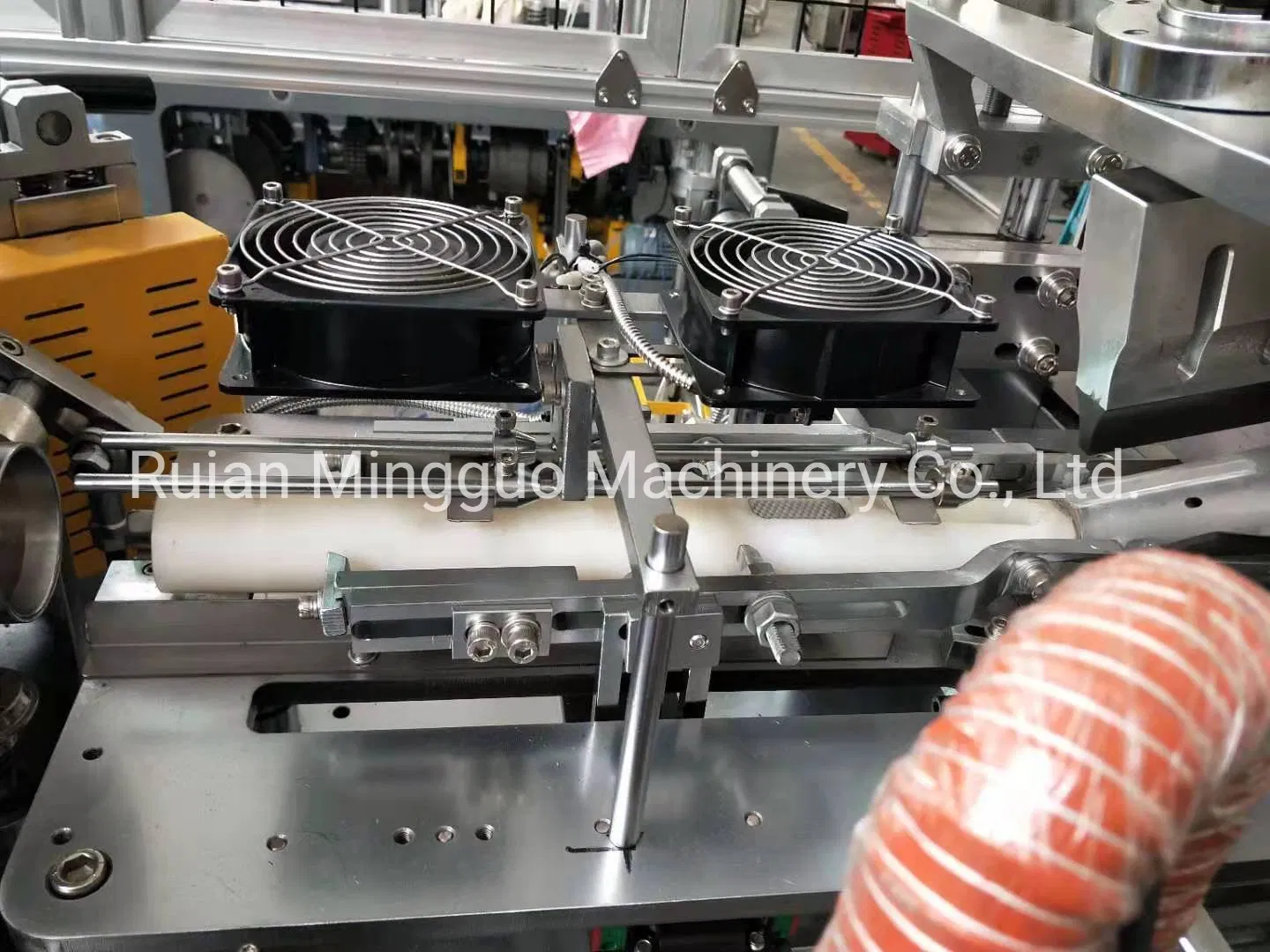

Machine Details
Pre-sales and After-sales Service
Pre-sales
Consultation, free samples (excl. freight), and factory visits.
Warranty
1-year quality guarantee for the paper cup machine.
Installation
On-site technologist guidance for installation and adjustment.
Spare Parts
Free consumable spare parts provided for the first year of use.

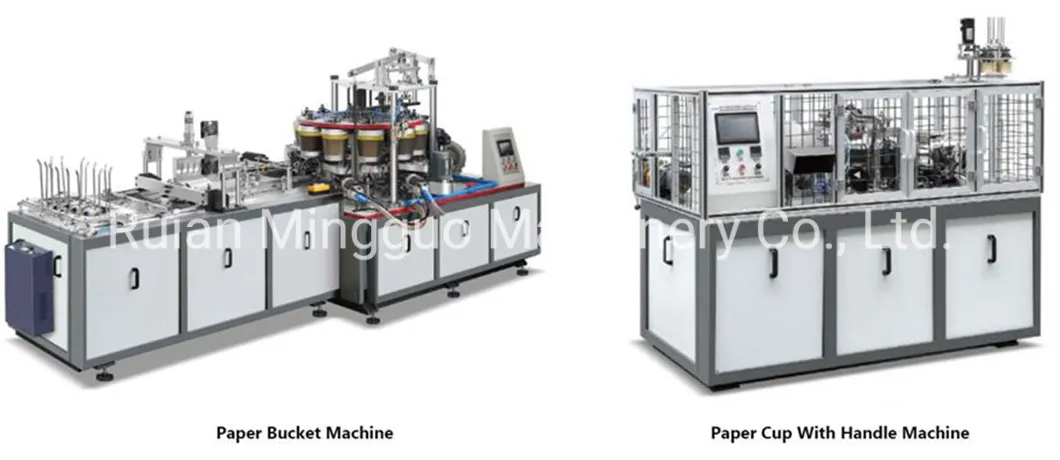

More Products & Applications

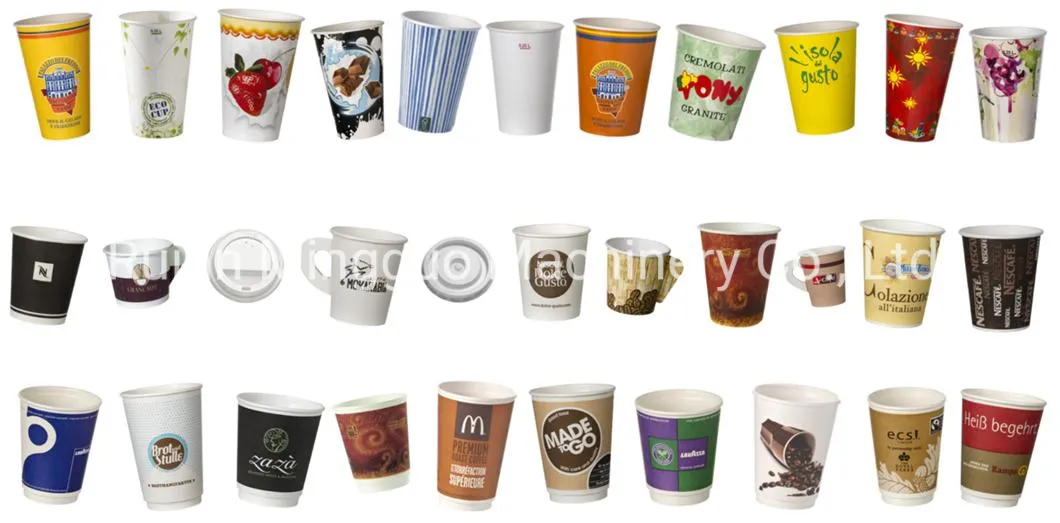

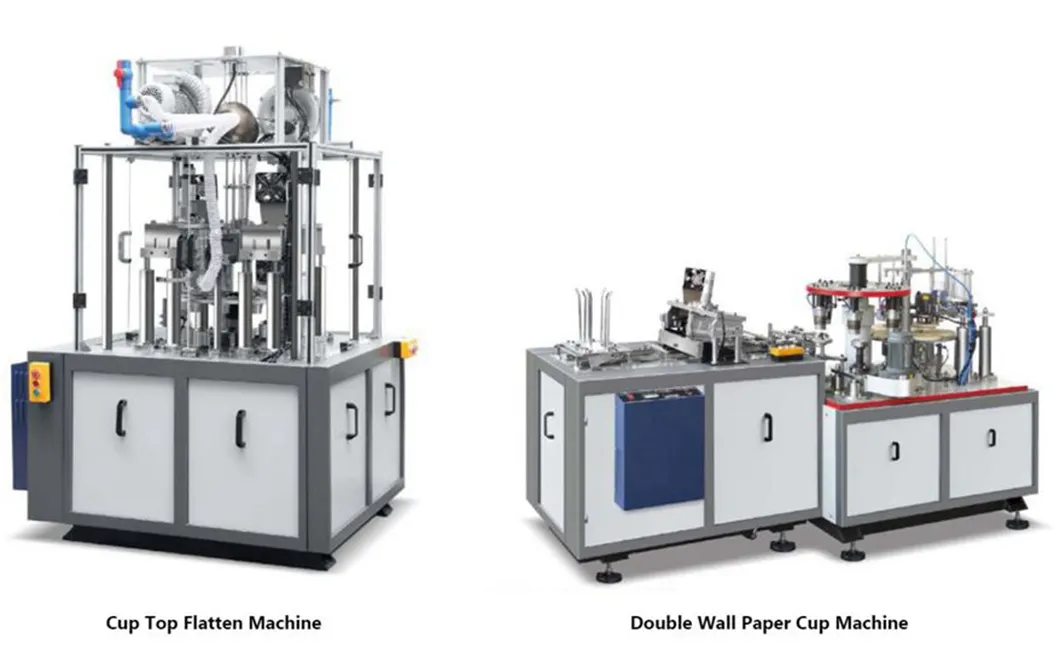

Cup Variety Production Samples Machine Structure

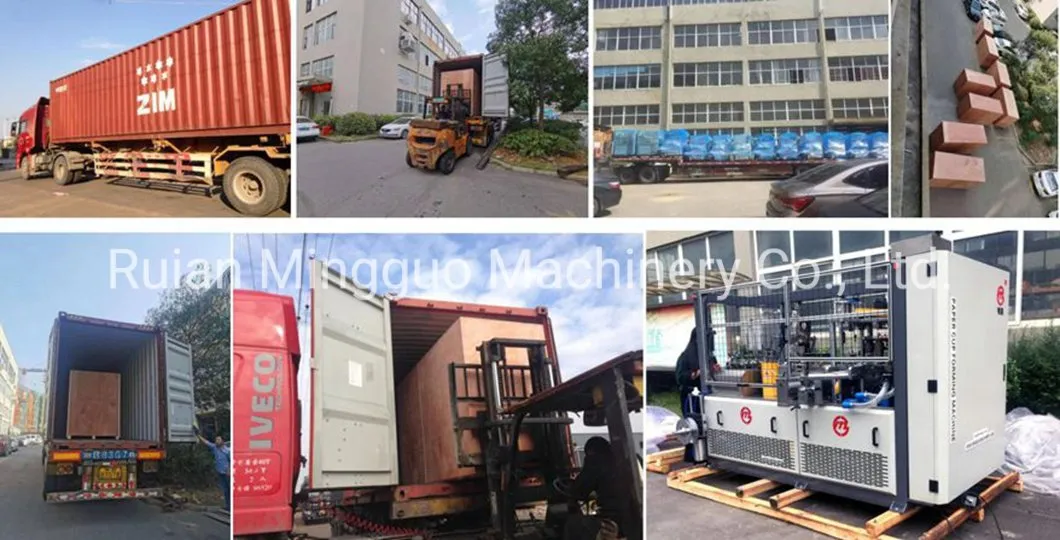

Shipping Details
Loading and Shipping
Wooden Case Packing
Frequently Asked Questions
What types of containers can this machine produce?
Our machines can produce tea cups, coffee cups, ice cream cups, noodle bowls, salad bowls, and various fast food buckets.
What is the volume range for the cups and bowls?
The machine handles volumes from 2oz to 190oz, approximately 50ml to 5000ml.
Is customization available for specific cup designs?
Yes, almost all our forming machines can be modified and customized to meet your specific container dimensions and requirements.
What information is needed for an accurate quotation?
Please provide sample pictures, cup specifications (top/bottom diameter and height), and the GSM of the paper being used.
What are the typical payment terms?
Standard terms are 30% T/T in advance and 70% balance payment before shipping.
Do you provide technical support for installation?
Yes, we can dispatch technologists to your factory to guide the installation and adjustment process for a set period.
