Erbium Laser Resurfacing Equipment 1550nm Fiber Laser Beauty Machine for Home Laser Skin Tightening

Customization: Available
Type: 1550nm Fiber Erbium Laser
Theory: 1550nm Fiber Erbium Laser

Product Description

📋

Basic Information

Model NO.
HS-230
Application
Commercial
Portable
Yes
Certificate
CE0197, ISO13485, FDA 510K221770
Wavelength
1550nm
Laser Power
15W
Pulse Width
1~20ms/DOT
Cooling System
Advanced Air Cooling System
Laser Output
1~120mj/DOT
Density
25~3025 PPA/Cm2 (12 Level)
Scan Area
20*20mm
Operate Mode
Array, Random
Power Supply
AC 100~240V, 50/60Hz
HS Code
8543709990

Product Description

Erbium Laser Resurfacing Equipment 1550nm Fiber Laser Beauty Machine
Erbium Laser Resurfacing

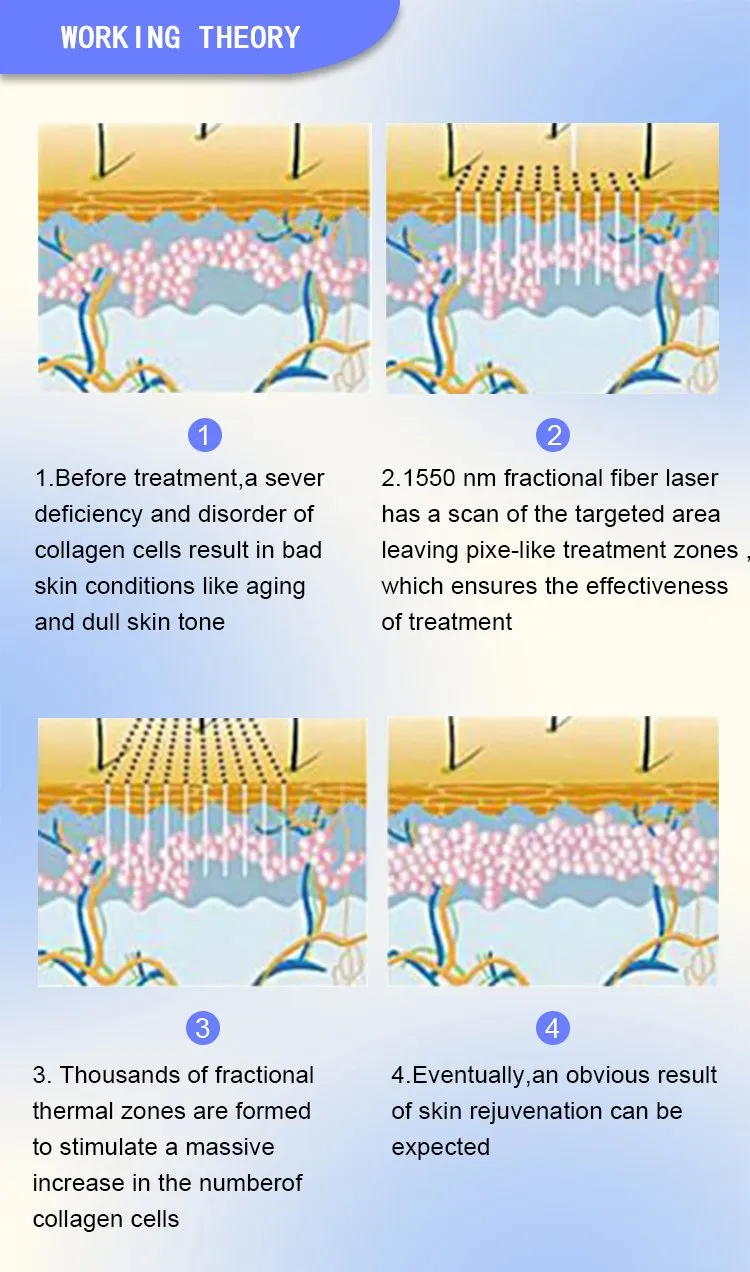

Principle of 1550nm skin rejuvenation fiber laser:
The 1550nm Erbium fiber laser is split into numerous microscopic beams, creating microscopic thermal zones in the skin. These fractionalized beams trigger the skin's natural healing process while preserving surrounding tissue. The treatment targets pigmented epidermal cells and penetrates the dermis to remold collagen and promote regeneration. The dermis fiber thickens and micro-wounds heal rapidly, resulting in smoother skin.
Key Applications:
  • Skin rejuvenation and toning
  • Wrinkle removal
  • Acne scar removal
  • Skin resurfacing
  • Stretch mark removal
⚙️

Technical Specifications

ModelHS-230
Wavelength1550nm Erbium fiber laser
Laser power15W
Laser output1~120 mJ/dot
Density25~3025 PPA/cm2 (12 level)
Scan area20x20mm
Pulse width0.06~8ms/dot
Operate modeArray, Random
Cooling SystemAdvanced air cooling system
Power supplyAC100V or 230V, 50/60HZ
Dimension52x44x32cm (L*W*H)
Weight30Kg
🏆

Key Advantages

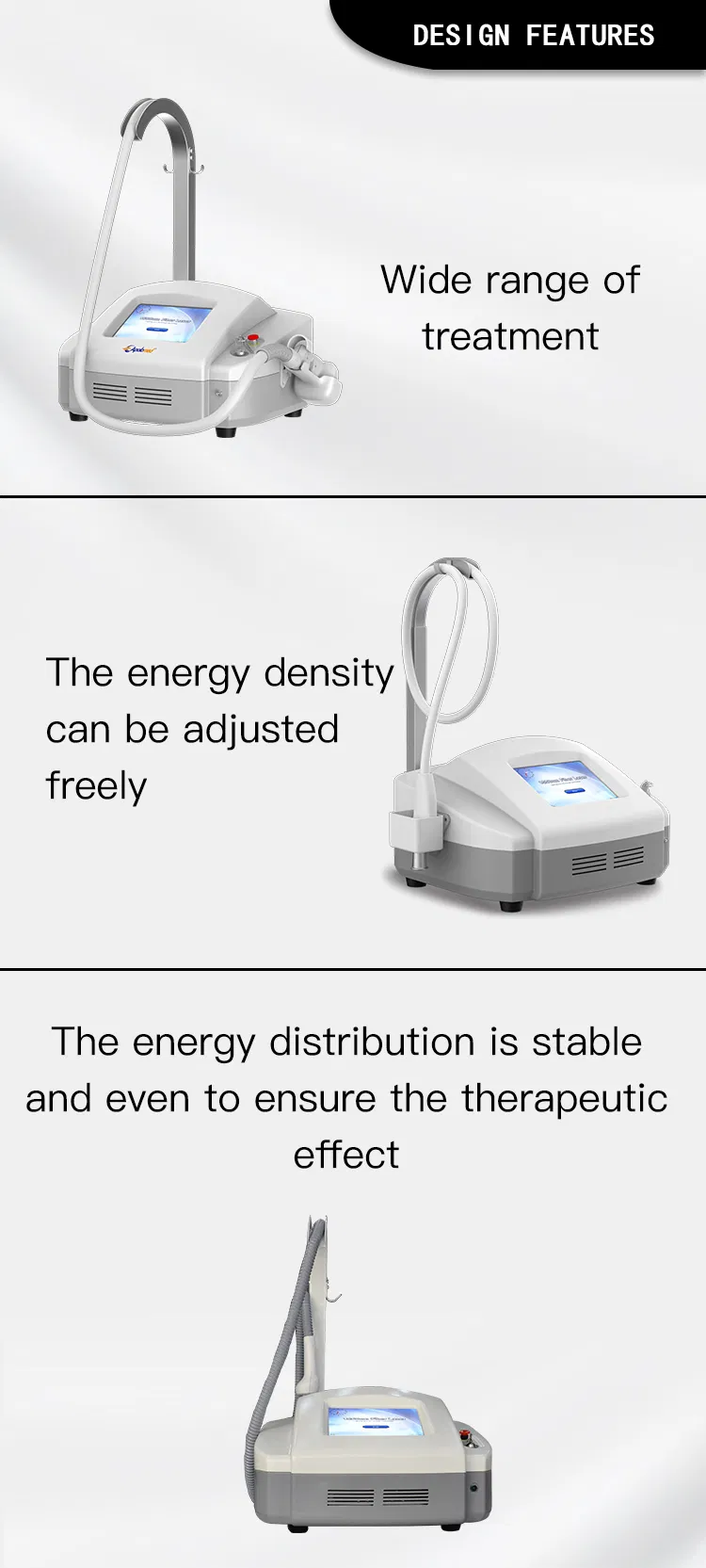

  • Treat a wider range of indications with only one machine.

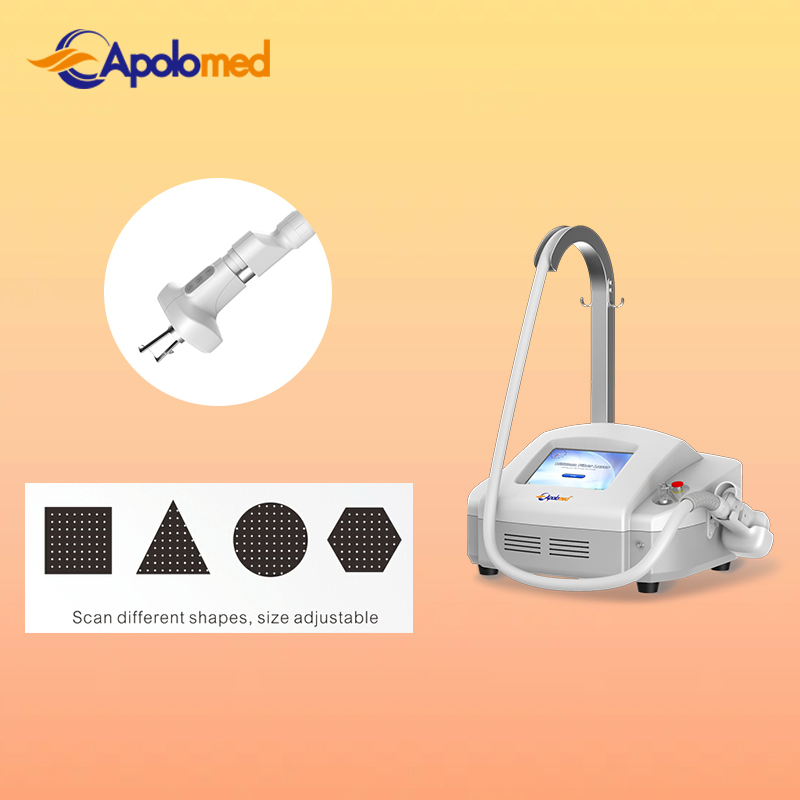

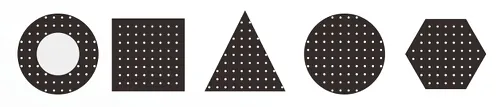

  • Select specific treatment areas easily, including irregular shapes.

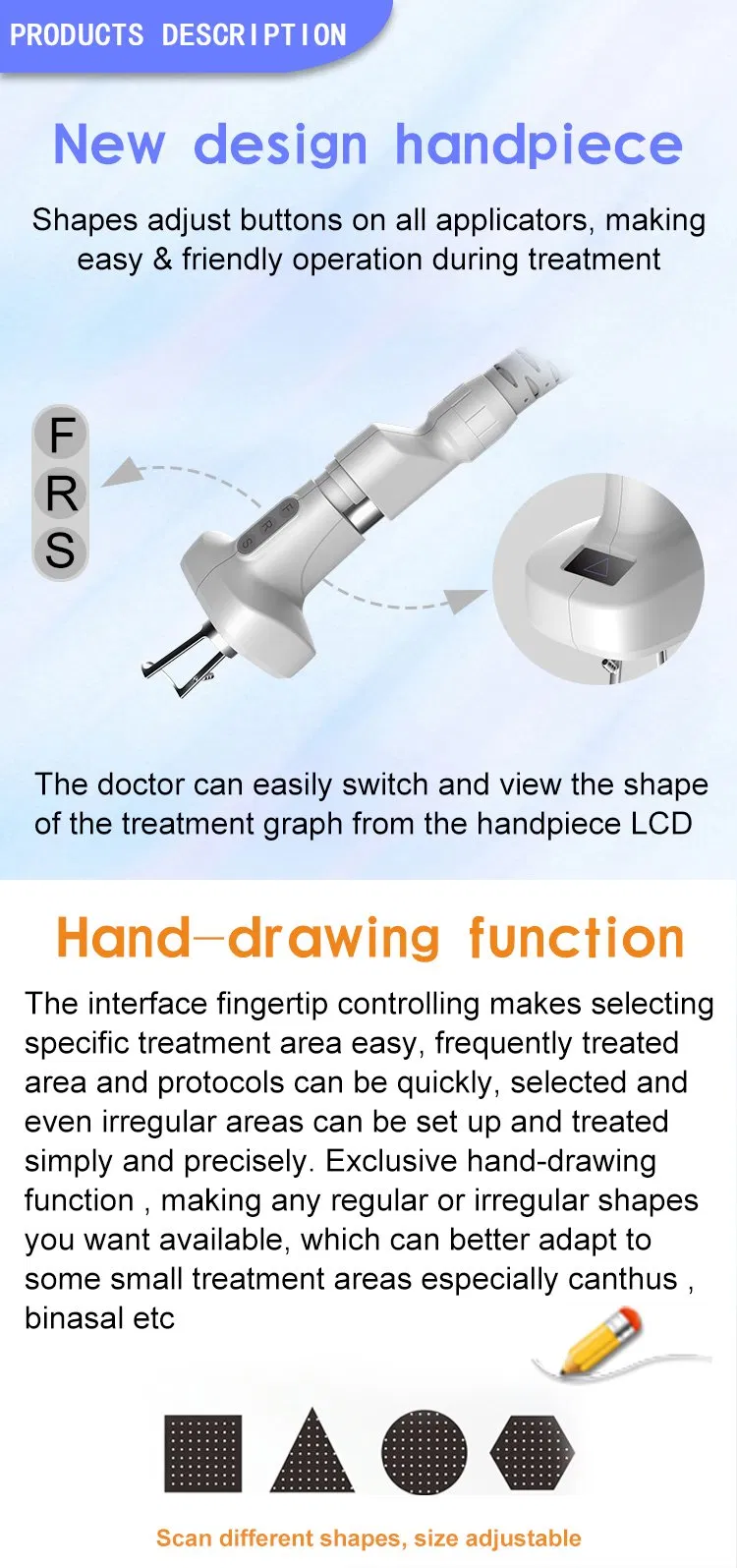

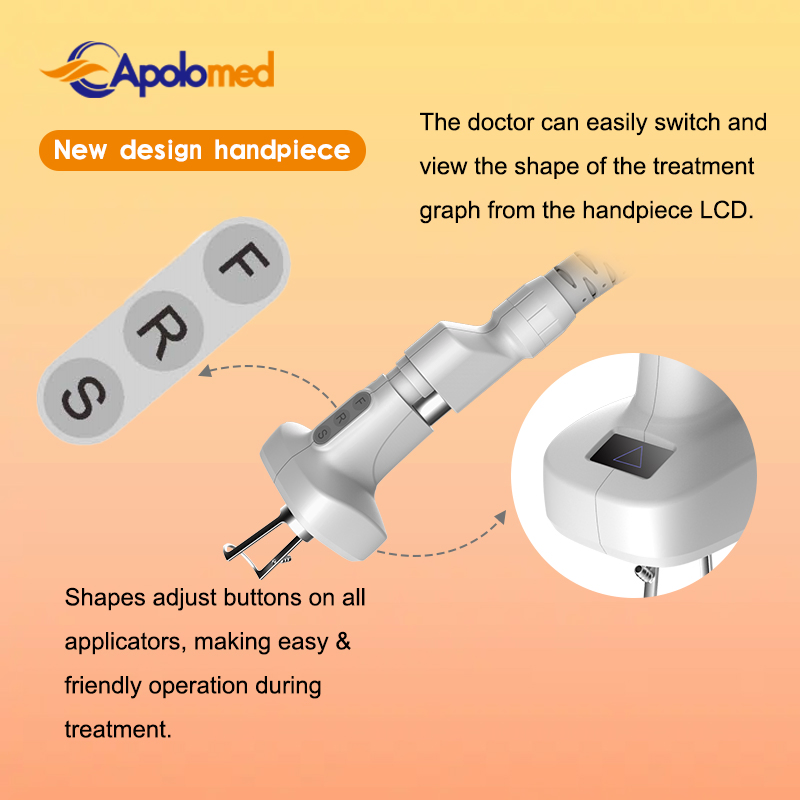

  • Compact handpiece offers user comfort and easy treatment application.
  • Density is fully adjustable for personalized results.

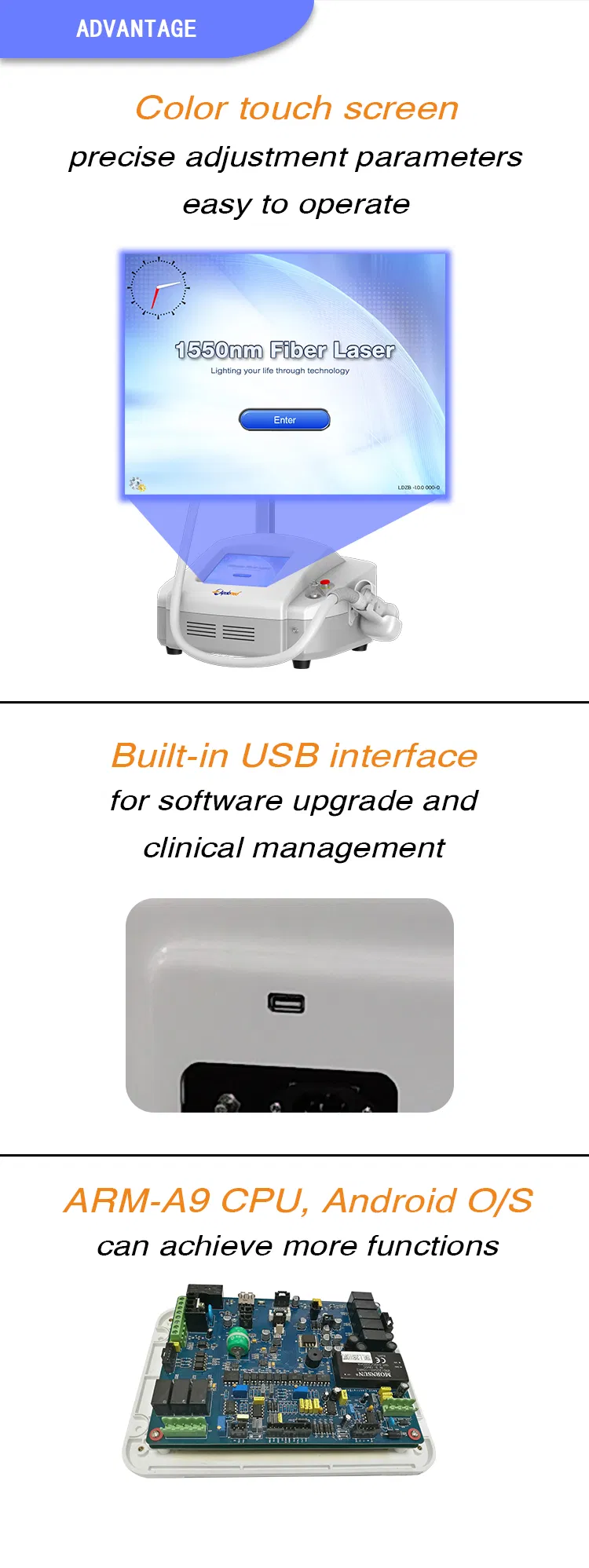

  • Touch screen interface for quick and optimal setting adjustments.
  • Stable energy output ensuring consistent clinical results.
  • Smart Android operation system for customer database and custom interfaces.
🛡️

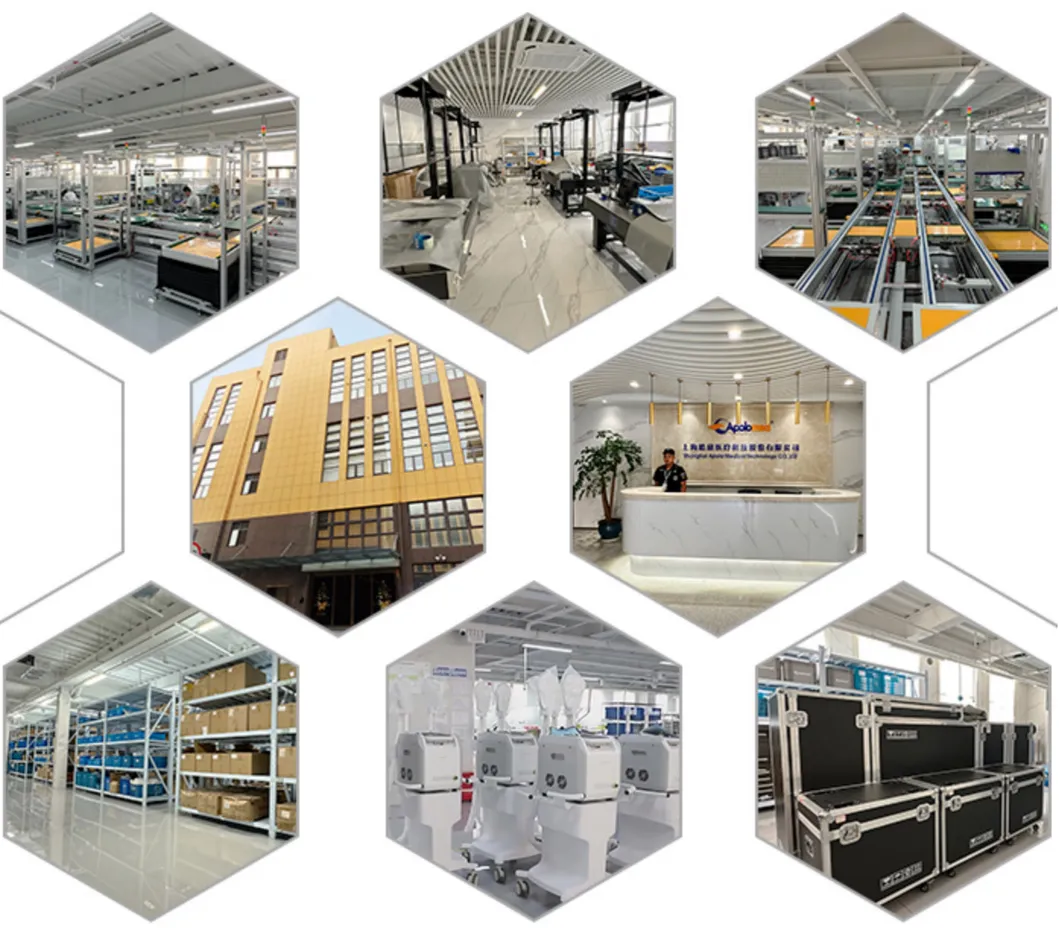

Quality & Certificates

Equipment is manufactured strictly in accordance with ISO 13485. Products comply with Medical CE certificates under Council Directive 93/42/EEC(MDD) and regulations (EU) 2017/745(MDR). Certifications also include US 510K, Australia TGA, and Brazil Anvisa.

Frequently Asked Questions

1. What are the primary uses of the 1550nm Fiber Laser?
The 1550nm fiber laser is primarily used for skin rejuvenation, wrinkle removal, acne scar treatment, and improving skin texture through non-ablative resurfacing.
2. How is quality guaranteed for these devices?
Quality is ensured through strict adherence to ISO 13485 standards, including pre-production samples and a rigorous final inspection before shipment.
3. What skin types can be treated with this laser?
The fractional 1550nm laser is designed to be safe for various skin types, providing controlled thermal zones that minimize downtime and side effects.
4. Is the operating interface user-friendly?

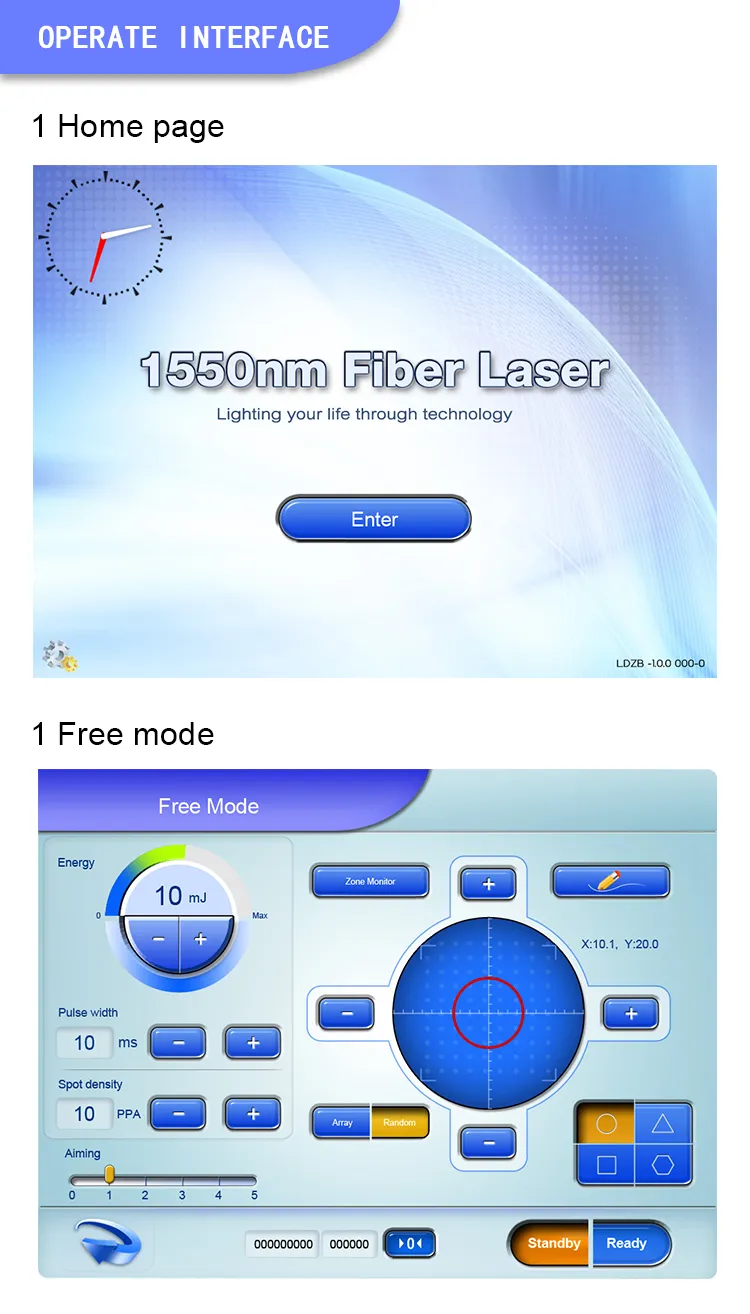

Yes, the machine features a 9.7" true color touch screen with an Android-based operating system, allowing for easy adjustment of scan shapes and treatment settings.
5. What cooling system does the machine use?
It utilizes an advanced air cooling system to maintain stable performance and ensure patient comfort during the treatment process.
6. Are there different scan modes available?
Yes, the device supports both Array and Random scan modes, with adjustable density levels to customize the treatment based on the specific skin condition.
✈️
